Vírendahulsutöng 0,08-10+16MM (6)

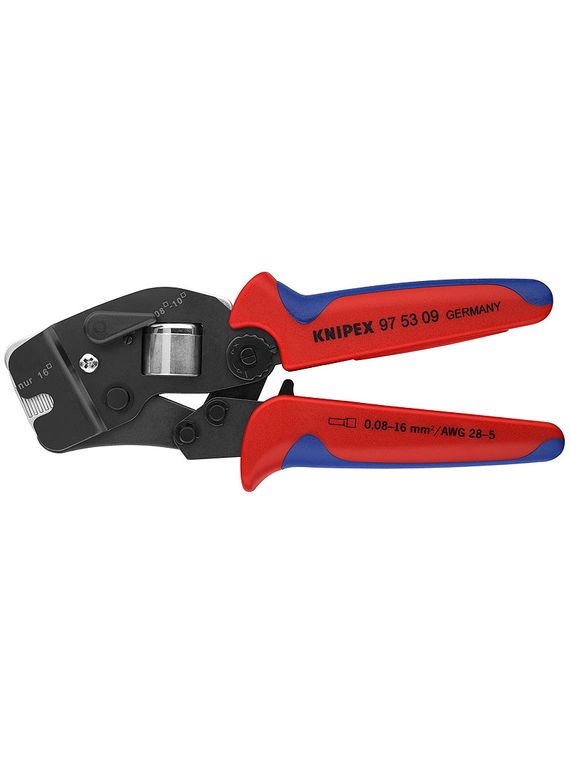

Self-Adjusting Crimping Pliers for wire end sleeves, with front loading

• For crimping wire end sleeves according to DIN 46228 parts 1 + 4
• Self-adjusting adaptation to the desired wire end sleeve size: no wrong crimps caused by using the wrong die
• Front loading of the end sleeves wire end sleeves into the tool
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable
• Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
• Handy shape and low weight provide high operation comfort
• Compression from 0.08 – 10.0 and 16.0 mm² in one profile
• With selector lever for setting the crimping area either to 0.08 – 10 mm² or 16 mm²
• Suitable in particular for all twin wire end sleeves up to 2 x 6 mm² or 2 x AWG 8
• Chrome vanadium electric steel in special quality, oil-hardened
